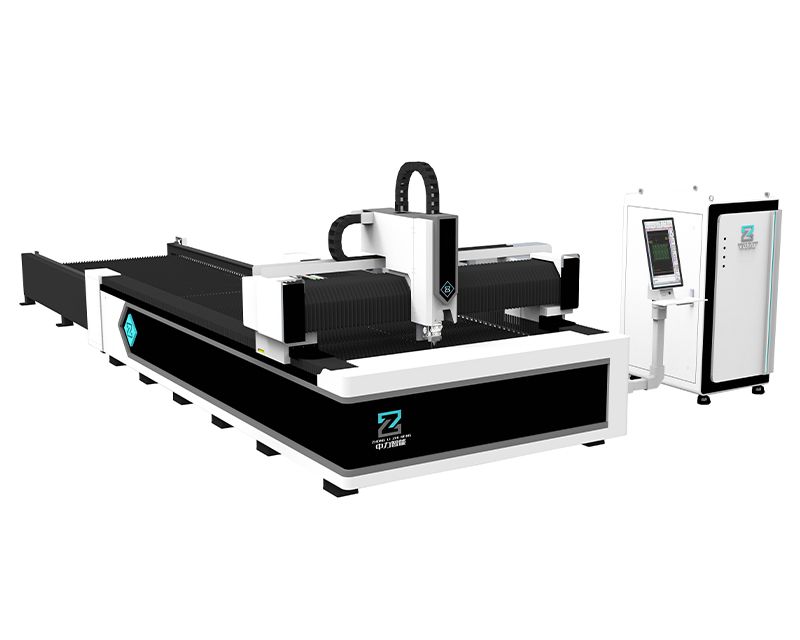

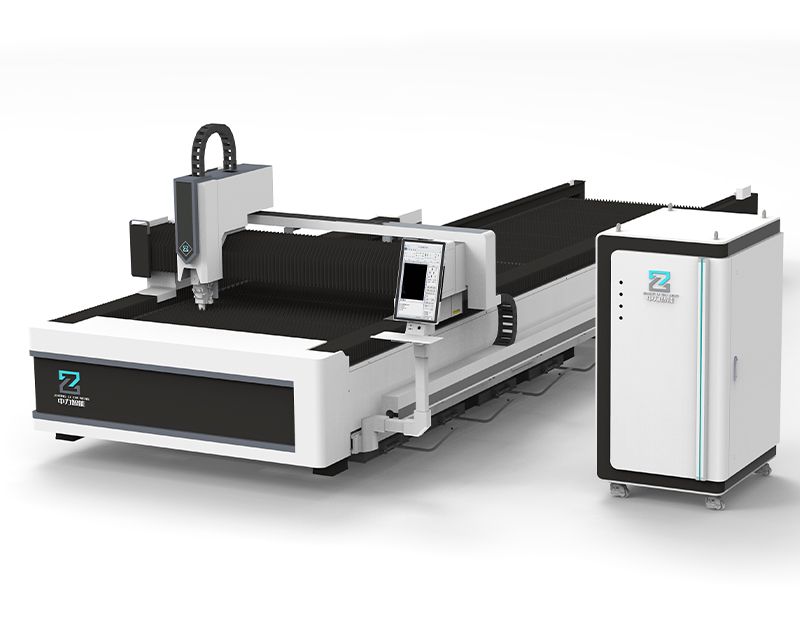

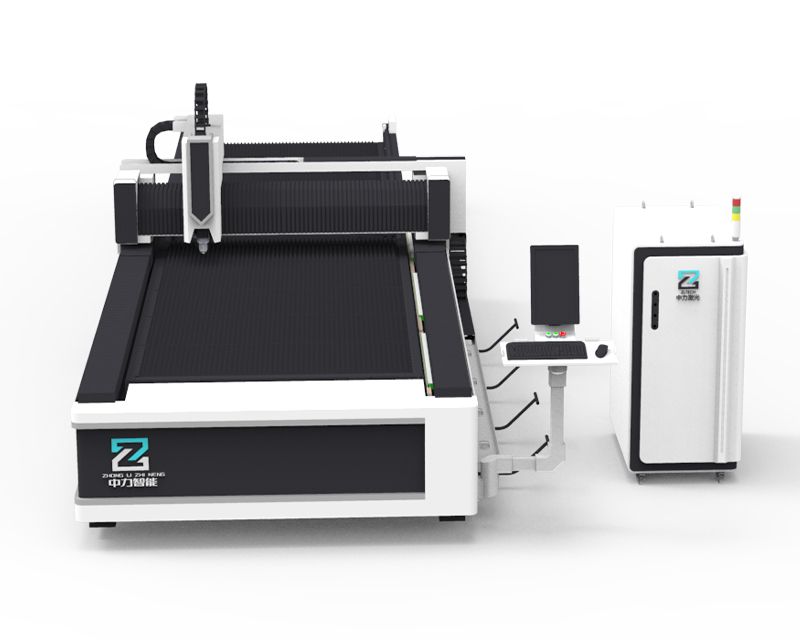

Sheet Metal Fiber Laser Cutting Machine Metal Laser Cutter With Exchange Platform

Brand : ZLTECH

Model : ZL3015B

Category : Fiber Laser Cutting Machine

Payment : TT, Visa, Mastercard, Credit Cards, Paypal

Supply Ability : 200 Sets / Month

Warranty : 3 Years


Description

Fiber laser cutter is a new type of metal laser cutting machine. The laser beam with high energy will focus on surface of workpiece, and the irradiated area will be melted and vaporized instantly. The slag will be blowed away by the assist gas. Compared with ordinary Co2 laser cutting machines, fiber laser cutting machine saves space and gas consumption, and its photoelectric conversion rate is higher.


Fiber laser cutter can help  us cut many different metals, such as stainless steel, carbon steel, copper, aluminum, brass, gold, silver, iron, titanium, alloys, etc.


CNC fiber laser cutting machine can be applied to various industries, such as aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, precision accessories, ships, elevators, household appliances, craft gifts, decoration, advertising, metal external processing, kitchenware processing, etc.


1kw - 20kw CNC Fiber Laser Cutting Machine for Metals

Different thickness needs different laser power :

1kw - 20kw CNC Fiber Laser Cutting Machine for Metals


Main parts of fiber laser cutting machine :


Aviation Cast Aluminum Beam

• Machine adopts aviation cast aluminum beam, which is manufactured according to the aerospace standards and extruded with 4300 tons pressure.

• The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance.

• Using ultra-high pressure tensile technology and light weight design, the beam weight is reduced by 30% compared with cast aluminum beam and the strength and rigidity are increased by more than 20%.

1kw - 20kw CNC Fiber Laser Cutting Machine for Metals


Super heavy Steel Welding Machine Bed

• The bed is welded with big thickness square tubes, which has stiffeners inside to increase the structure strength and tensile strength.

• Equipped with hexagonal steel track, the pulley fits with the track closely, strong pneumatic tightening and the built-in pulley runs smoothly.

• Also the structure adopts firebrick, it can avoid the deformation of the bed caused by high temperature (over 6kw).

Enclosed Sheet Metal Laser Cutting Machine For Sale Fiber Laser Cutter with Exchange Platform


Auto Focus Cutting Head

• Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time, improve the perforation quality and cutting speed. It’s simple, convenient and fast.

• Long life span

Full-circle water cooling around the focusing component, which can realize no heat, no fog with high power cutting, small volume cutting and long term cutting, the lifetime of the cutting head is improved greatly.

1kw - 20kw CNC Fiber Laser Cutting Machine for Metals


Intelligent operation software

• The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation.

• Cypcut is one professional software for fiber laser cutting, easy operation and its is suitable for many different processing occasions.

1kw - 20kw CNC Fiber Laser Cutting Machine for Metals


Independent Control Cabinet

• Dust-proof

We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components.

• Automatic Thermostat

The control cabinet is equipped with air conditioner which can keep the constant temperature automatically. It can prevent the high temperature damage for the components in summer.

1kw - 20kw CNC Fiber Laser Cutting Machine for Metals

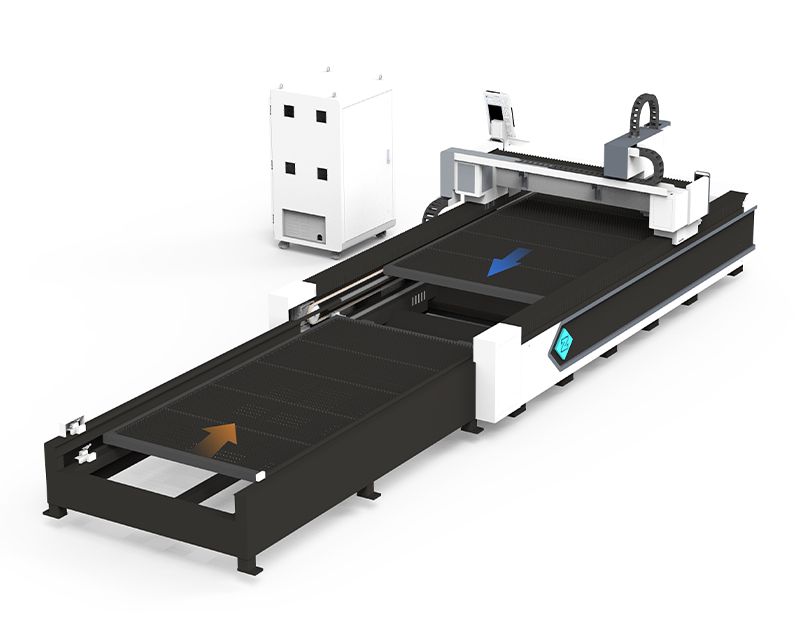

High Efficiency Exchanging Table

Adopts high-speed parallel exchange table design, dual working table exchange at the same time, stable and reliable transmission mode.

Fast, shorten the exchange time, save the loading and unloading auxiliary time. Exchange motor controlled by frequency converter, can finish the table exchange within 15S.

Enclosed Sheet Metal Laser Cutting Machine For Sale Fiber Laser Cutter with Exchange Platform


Parameters

Machine ModelZL3015BZL4015B ZL6015BZL4020BZL6020BZL6025BZL12025B
Cutting Area(length x width)3000mm×1500mm4000×1500mm6000×1500mm4000×2000mm6000×2000mm6000×2500mm12000×2500mm
Fiber Laser Power 1000W / 1500W / 2000W / 3000W / 4000W / 6000W / 8000W / 12000W / 20000W
Fiber Laser Generator BrandMAX / RAYCUS / IPG / DK
Laser Wavelength1,070-1,080nm
InterfaceUSB,RJ45
Moving Speed50m/min
Position Accuracy±0.02mm/m
Repeatability Accuracy0.02mm
Power Supply Requirement380V/50Hz/60Hz/60A(Customizable)
Max Acceleration1.0G/ 1.5G/ 2.0G
Compatible SoftwareCorelDraw/AutoCAD/Photoshop/AI
Brand of Motor and Driverss Japan Fuji; Japan Yaskawa ; Taiwan Delta
Support Graphic Format:LXD/.DXF/.PLT/.AI/.Gerber/.DWG
Transmit systemDual Rack & Pinion type
Control SystemFSCUT / Au3Tech / Raytools / Weihong
Cutting HeadRaytools / Au3tech / FSCUT /  Ospri / WSX / PRECITEC
ReducerJapan Shimpo /  France MOTOVARIO / Germany Lead-motion
Liner Guider SystemTaiwan Hiwin / Taiwan PMI / Italy PEK
Gear RackTaiwan YYC / Germany HERION
Electrical componentsSchneider made in France
Water ChillerGuangzhou TEYU / Wuhan Hanli /
OptionalRotary; Protective Cover



Strong Service Team

Sheet Metal Fiber Laser Cutting Machine Metal Laser Cutter With Exchange Platform

Sheet Metal Fiber Laser Cutting Machine Metal Laser Cutter With Exchange Platform

Sheet Metal Fiber Laser Cutting Machine Metal Laser Cutter With Exchange Platform

Sheet Metal Fiber Laser Cutting Machine Metal Laser Cutter With Exchange Platform

Sheet Metal Fiber Laser Cutting Machine Metal Laser Cutter With Exchange Platform

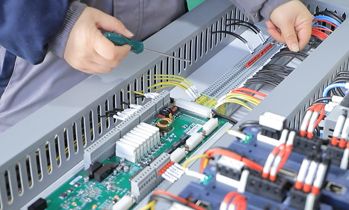

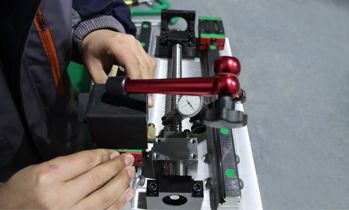

Quality Control & Testing

Sheet Metal Fiber Laser Cutting Machine Metal Laser Cutter With Exchange Platform

Sheet Metal Fiber Laser Cutting Machine Metal Laser Cutter With Exchange Platform

Sheet Metal Fiber Laser Cutting Machine Metal Laser Cutter With Exchange Platform

Sheet Metal Fiber Laser Cutting Machine Metal Laser Cutter With Exchange Platform

Sheet Metal Fiber Laser Cutting Machine Metal Laser Cutter With Exchange Platform

Tags

Hot Products

Ratings and Reviews

Derek from UK- Nov 11,2021

Derek from UK- Nov 11,2021

This is Derek from UK. We bought one 3000w fiber laser cutter from ZLTECH on year 2010. Their engineer David provided us technical support and machine works very well. I will be in touch with ZLTECH next year for one bigger power laser.

Seif from  Israel- Feb 11,2022

Seif from Israel- Feb 11,2022

This is Seif from Israel, one of my friend recommended ZLTECH to me and I bought one enclosed fiber laser cutting machine from them.Machine runs perfectly and it helped us a lot, its cutting accuracy is much better than our old plasma cutter.
