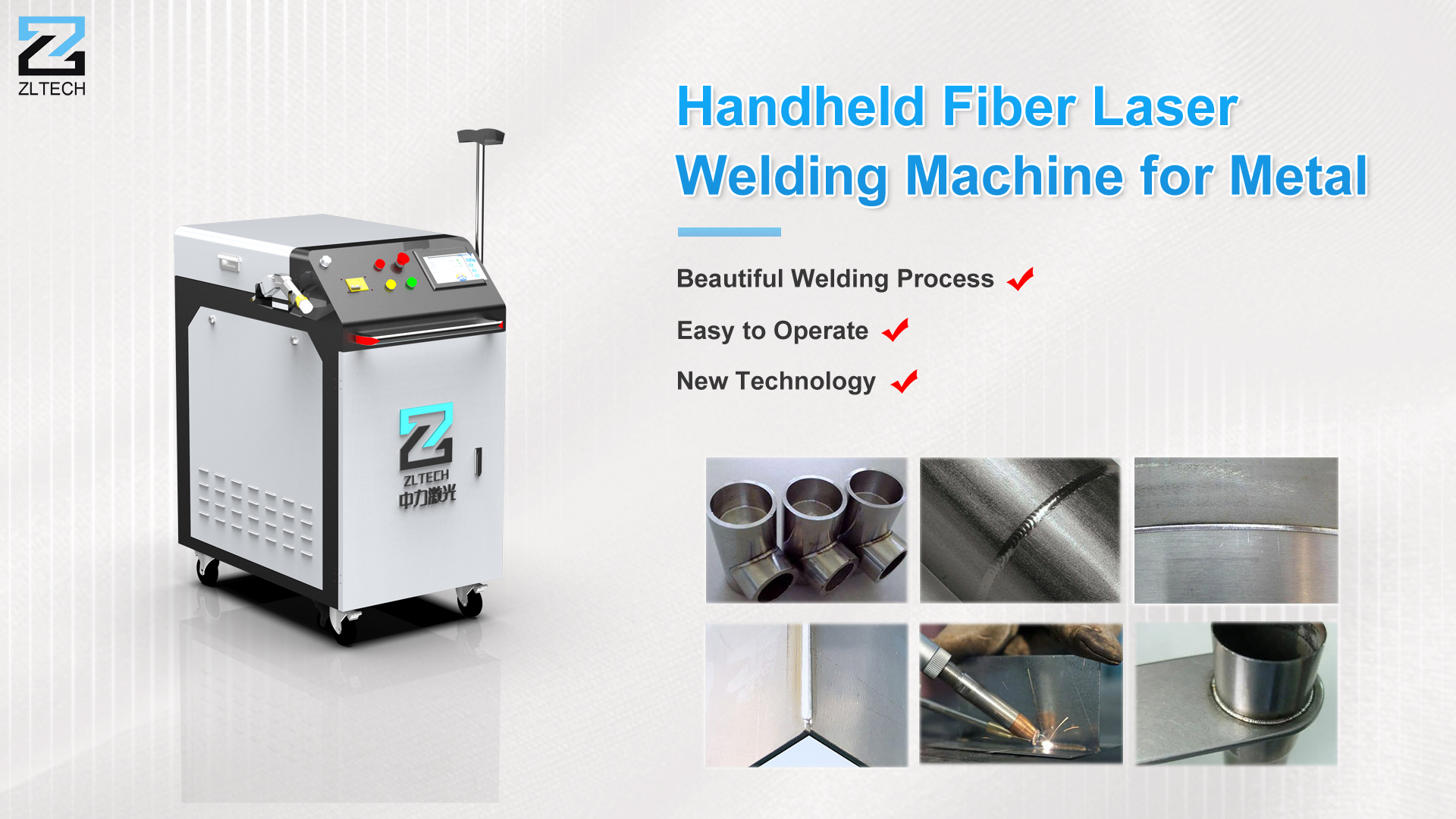

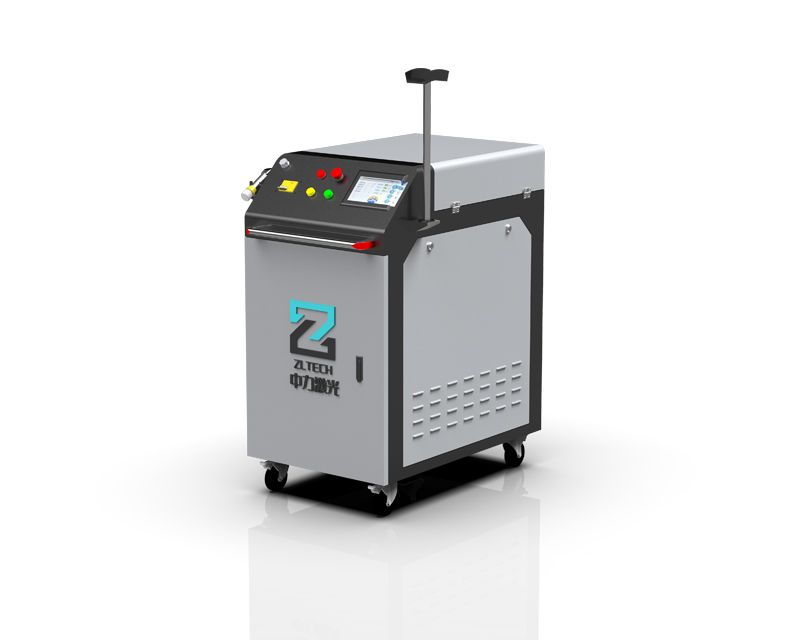

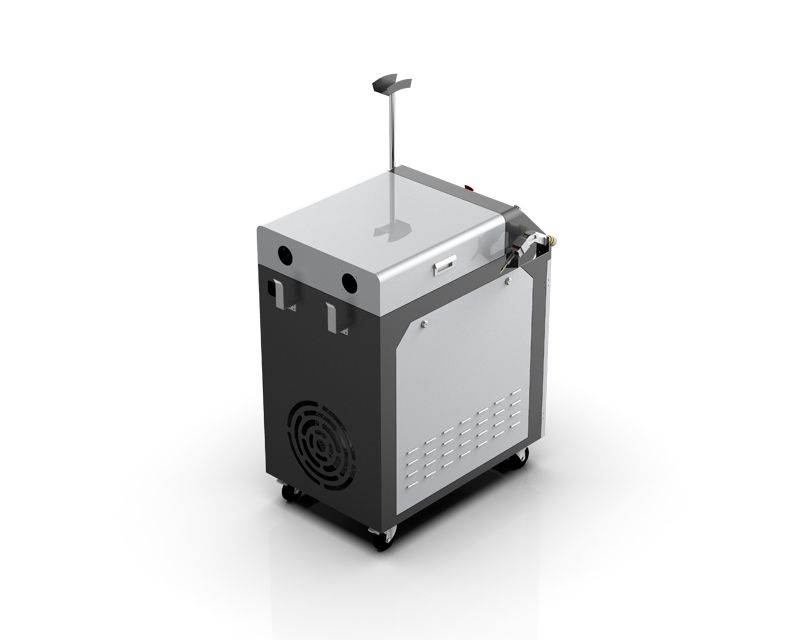

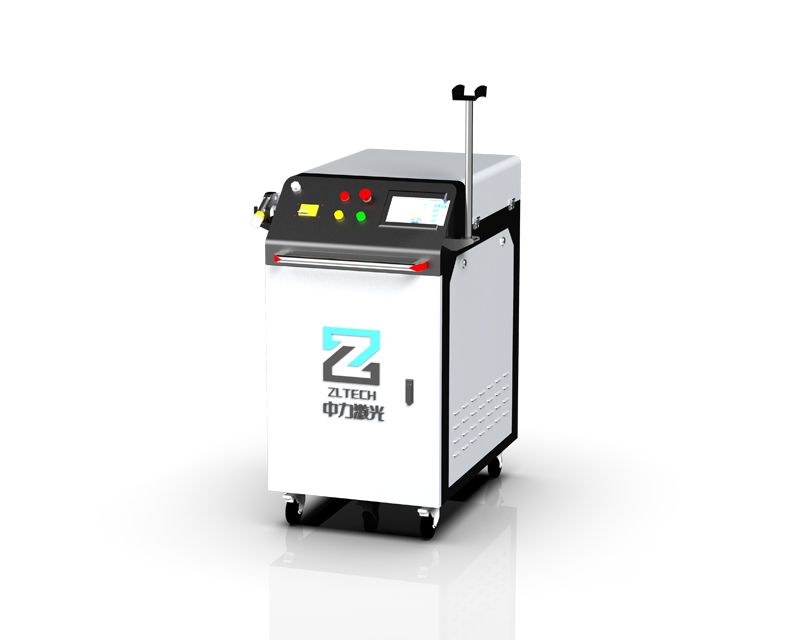

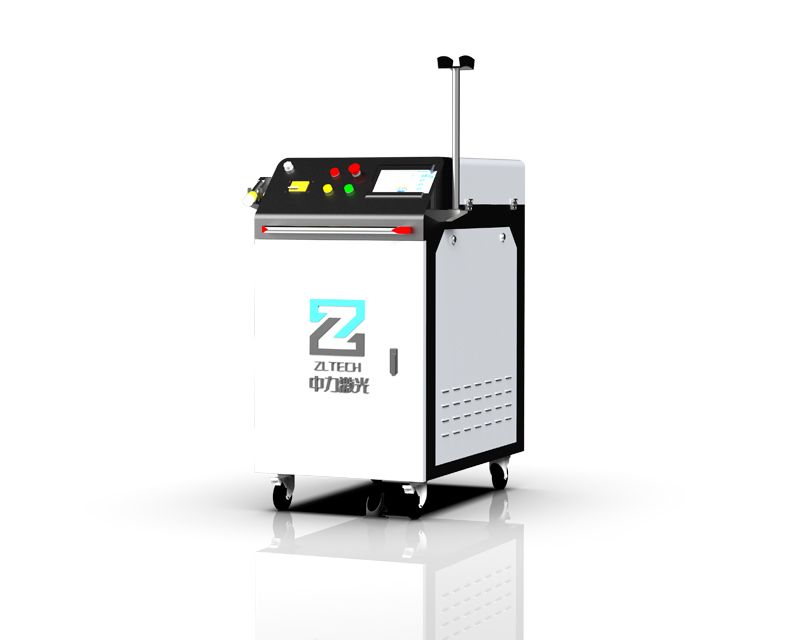

3 in 1 Handheld Fiber Laser Welding Cleaning Cutting Machine for Metal

This THREE-IN-ONE laser welding cleaning cutting machine adopts a simple and easy-to-operate hand-held design. The optional power is 1000W/1500W/2000W/3000W.  It is equipped with a high-quality portable laser head, a stable laser generator and a high-quality water chiller.

Application :

- Fiber laser cleaning part has a good cleaning effect on iron, carbon steel plate, stainless steel plate, mold steel gear, aluminum plate, paint layer and other materials. The laser cleaning mode can clean the oxide layer, remove the paint on the surface; clean the surface oil, stains and dirt, clean the rubber mold residue, etc.

- Fiber laser welding part is suitable for stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys. It can also be used for a variety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copper and so on.

- Fiber Laser Cutting head is suitable for cutting steels, aluminum, brass, copper and many other different metals.

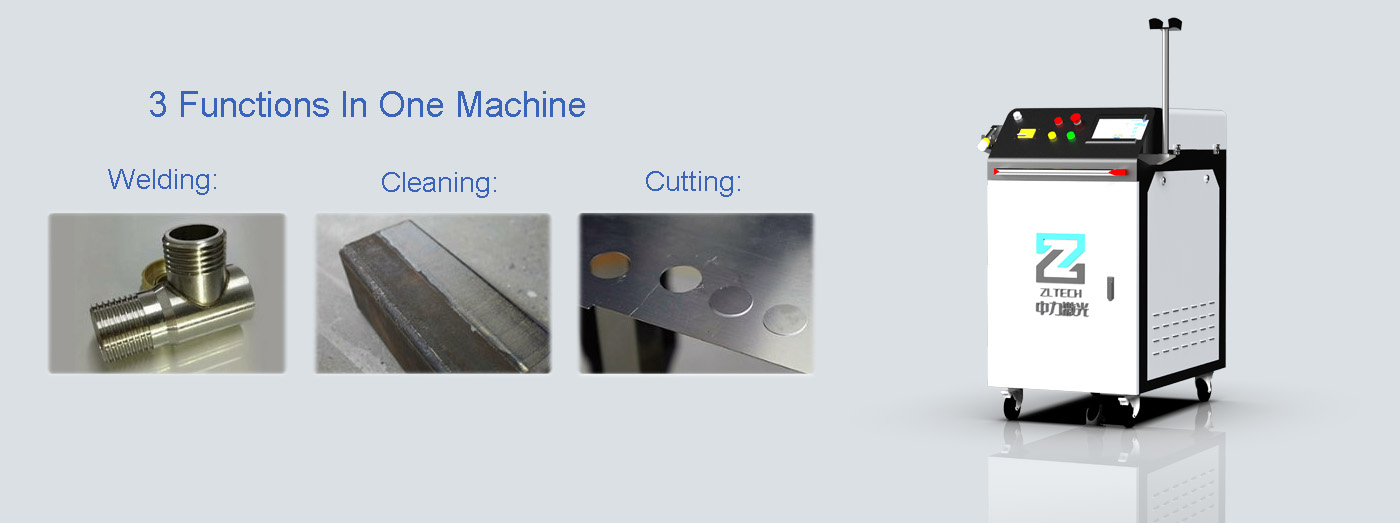

(1) The three-in-one design can meet the functions of laser cleaning, welding and cutting.

(2) Using high-quality chiller, dual temperature and dual control, the temperature control accuracy can reach ±1 °C, and there are various settings and fault display functions, which are suitable for different use occasions.

(3) There is a roller design at the bottom, which is convenient for handling, compact in structure, light and easy to carry.

(4) Fast, efficient, low cost, no chemical cleaning solution, no consumables, green, safe and environmentally friendly.

(5) Hand-held design, simple operation and automatic process, which can realize selective cleaning, welding and cutting of precise position and precise size.

(6) The operation is simple, just power on, it can be hand-held or cooperate with the manipulator to realize automatic work. Different jobs can be achieved by simply changing the nozzle and control system.

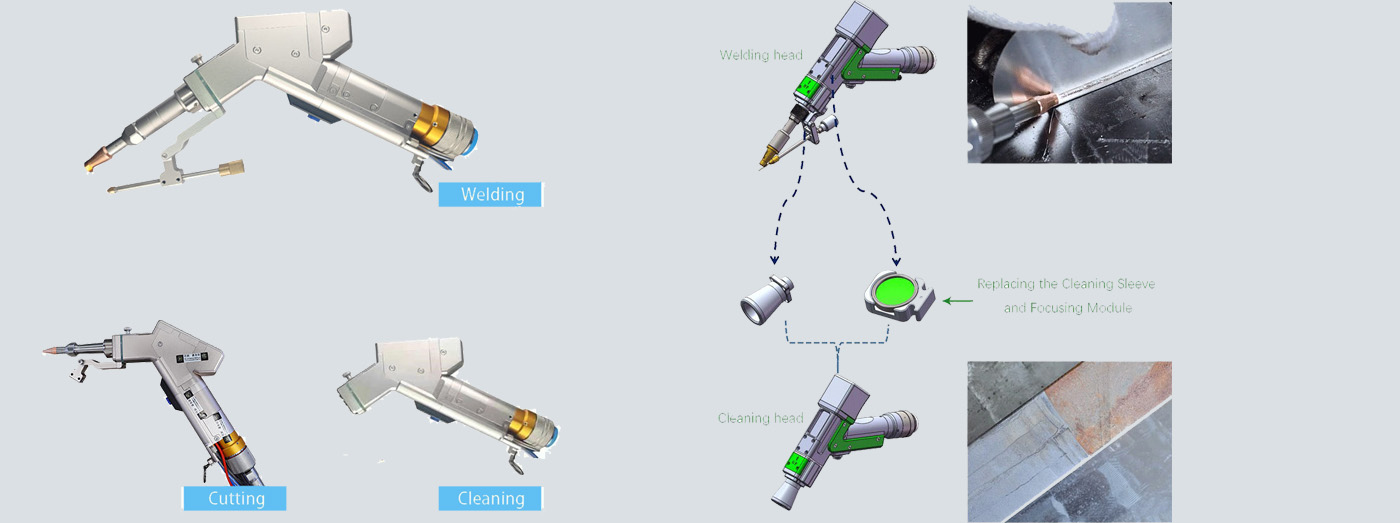

It's easy to change the working mode by replacing the cleaning sleeve and focusing module:

Details of the machine :

Laser Welding Head :

Smart high frequency swing welding head. Can be widely used in metal equipment, stainless steel home and other industries complex irregular welding process.

Laser Source :

Top brand fiber laser source Max, high power. The energy density is high, the heat input is low, the amount of thermal deformation is small.

Intelligent Operating System :

• Adopt touch screen design, easy and quick to click and set, with real-time fault reading, feedback and alarm functions.

• There is a process parameter library, which can realize the rapid storage and recall of process parameters.

• Simple operation interface, humanized design, touch screen control, automatic layout optimization, to ensure high-speed operation of the whole machine.

Laser Wire filler Welding Process :

• Welding wire can be added during the welding process to solve the problem of excessive welding gap.

• Improved shaping of aluminum alloy laser welded surfaces, improved mechanical properties of joints, prevented cracks, and achieved less power.

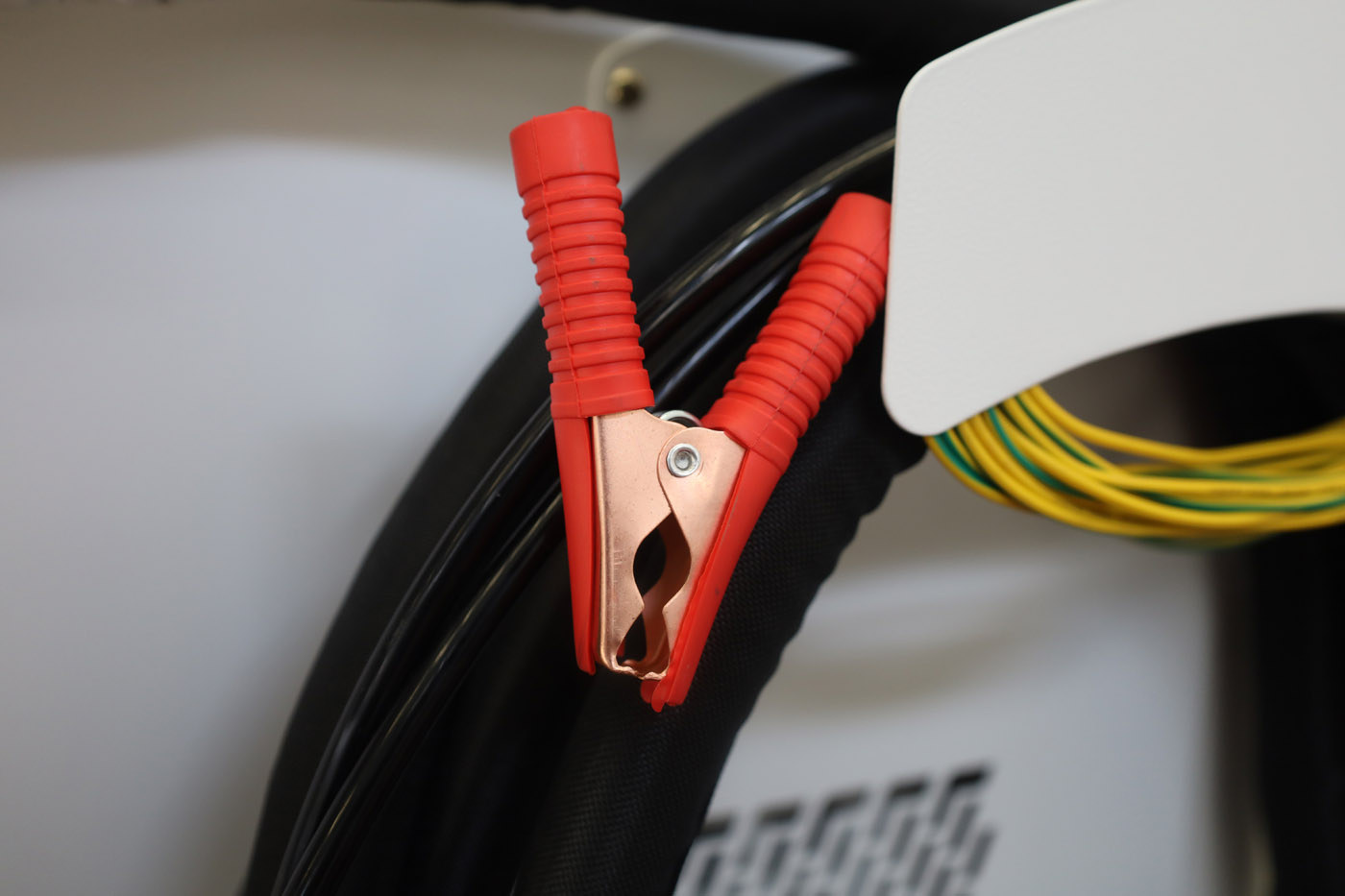

                              Safety Clip

  There have the red safety clip on the side of the laser head. The operator must fix the clip on

 the metal materials, then the machine could normal working. This is the protection for the

 operator, which give the more safe working environment.

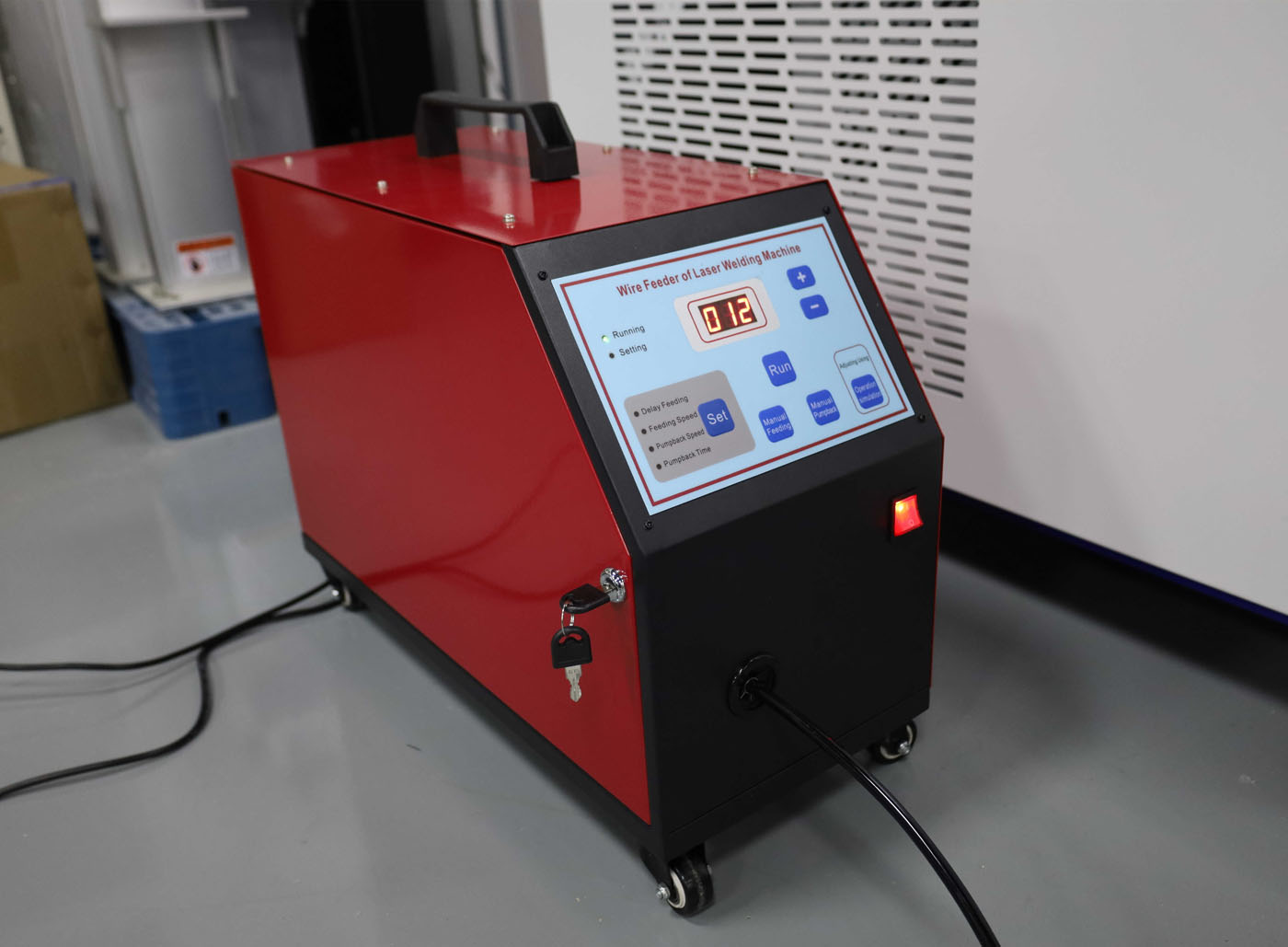

                            Auto Wire Feeder

  Our wire feeding system support max 3.0mm diameter metal wire, and with the double motor inside

  the machine case, which give the more stable support for the machine working.

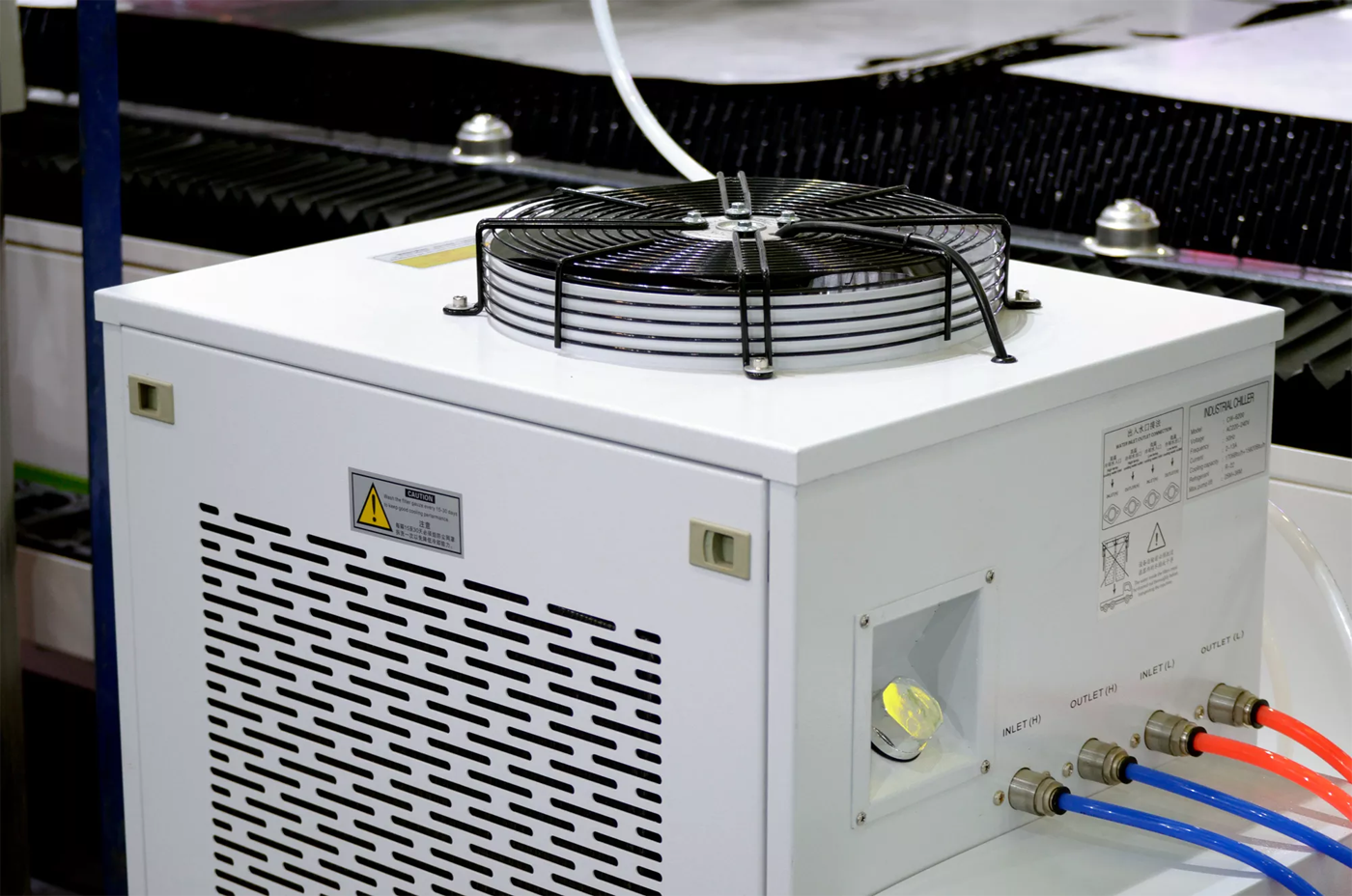

                                 Water Chiller

  High cooling rate, which can weld fine weld structure and good joint performance.
