Laser Cleaning Machine
Home - Products - Laser Cleaning Machine - Handheld Pulsed Fiber Laser Cleaning Machine
Brand : ZLTECH
Model : ZLC-1000W / 1500W / 2000W
Category : Laser Cleaning Machine
Payment : TT, Visa, Mastercard, Credit Cards, Paypal, Western Union
Supply Ability : 200 Sets / Month
Warranty : 2 Years
Description

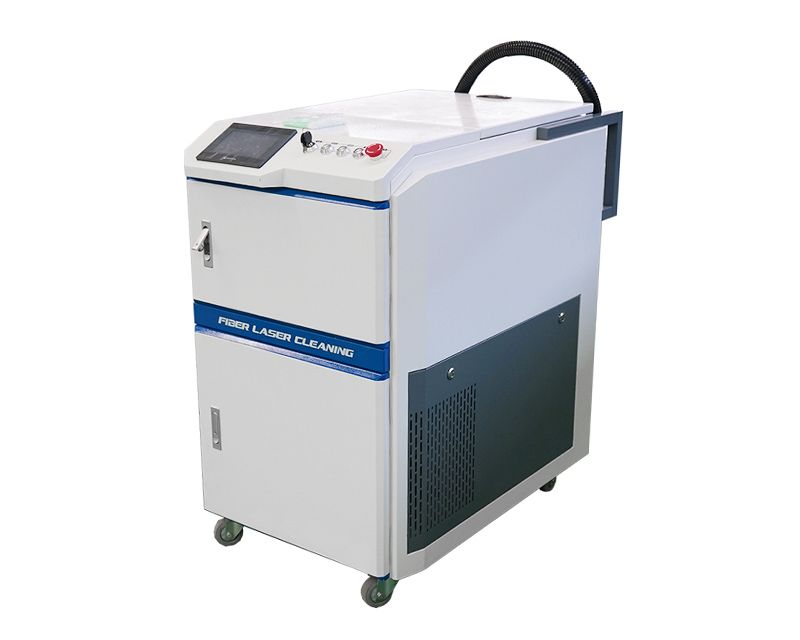

Laser cleaning Machine is a high-tech product of the new generation of surface treatment, which causes the surface dirt, rust or coating to evaporate or peel off, and effectively removes the surface adhering or surface coating of the cleaning object at high speed.

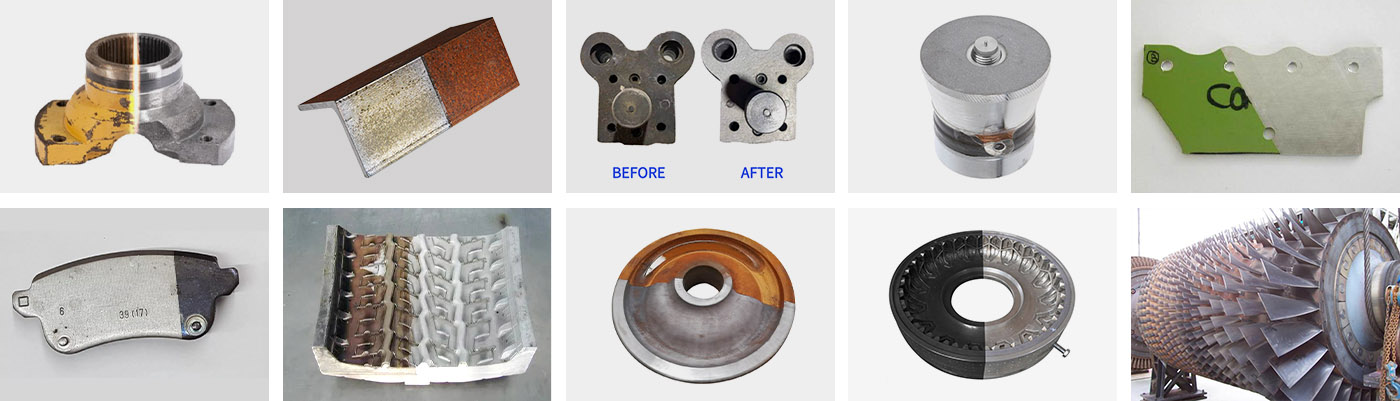

Our Laser cleaning machine can be used car perimeter, rubber mold, heritage restoration, ship, rail transit, high-end machine tools Remove coating, degumming, lithographic surface treatment, oil removal, pretreatment, paint removal, rust removal,etc. which can effectively reduce the machine maintenance cost and improve the industrial cleaning effect.
Features :
1.Using the best fiber laser in China
2.Non-contact cleaning, without damage
3.High precision cleaning, good precision of position cleaning, selective washing.
4.Without any chemical cleaning fluid and no consume materials,safe and environment-protect
5.Simple operation,hand-hold clean or with a mechanical hand to clean .
6.Good cleaning effect and save time.
7.Laser cleaning system is stability, almost no maintenance
Comparison | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
Washing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
Harm to base material | None | Yes | Yes | None |
Washing Efficiency | High | Low | Low | Mid |
Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |

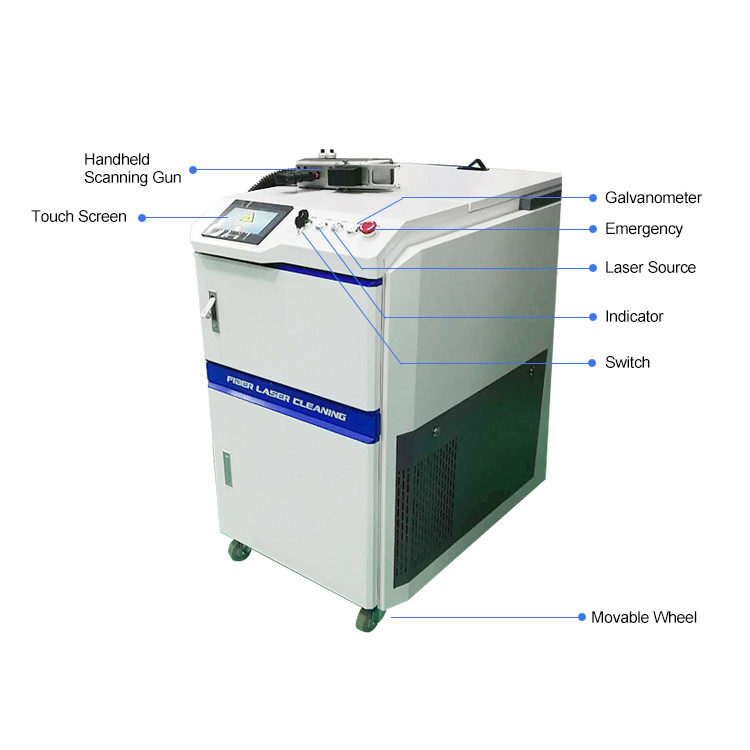

Features

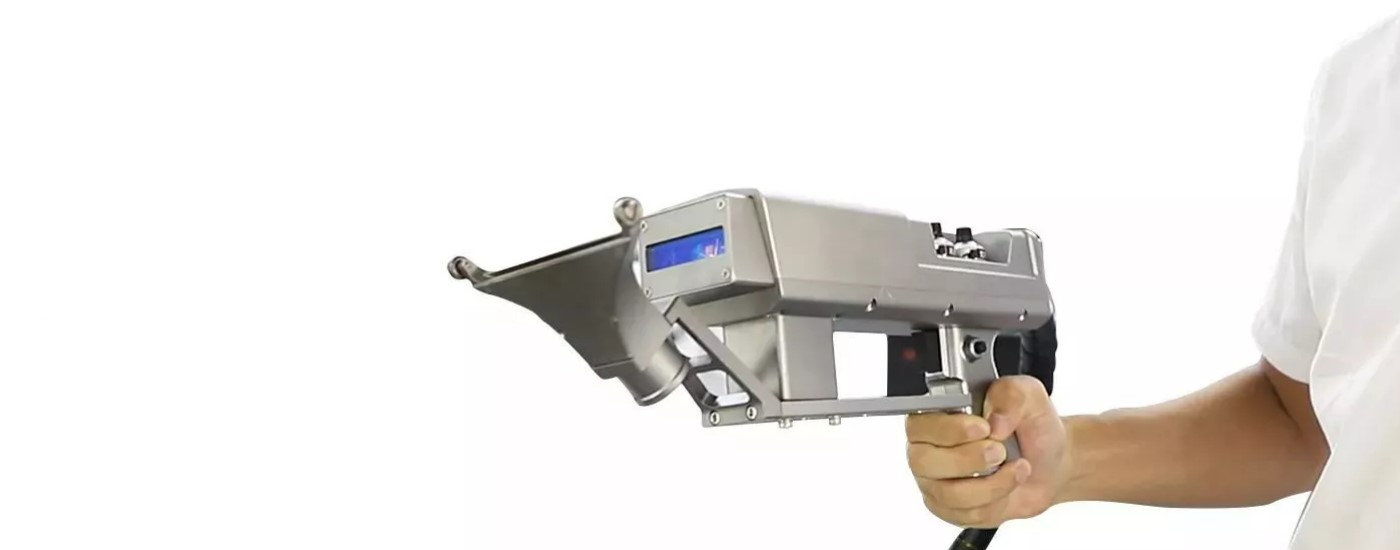

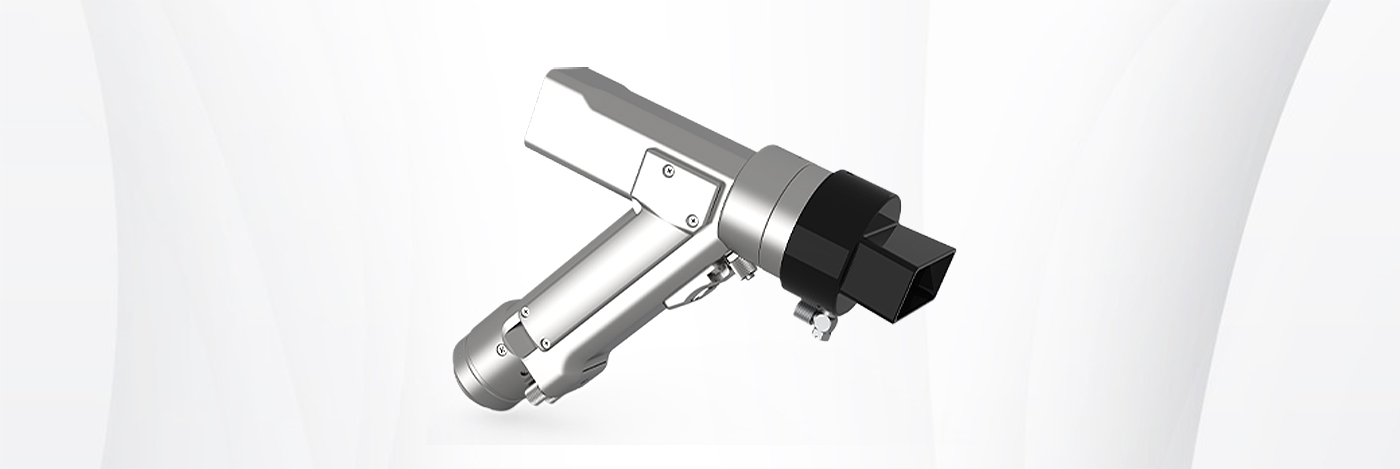

Laser Cleaning Head :
• Using a hand-held cleaning gun design, it can response to various objects and angles flexibly.
• Easy to operate and convenient to move.

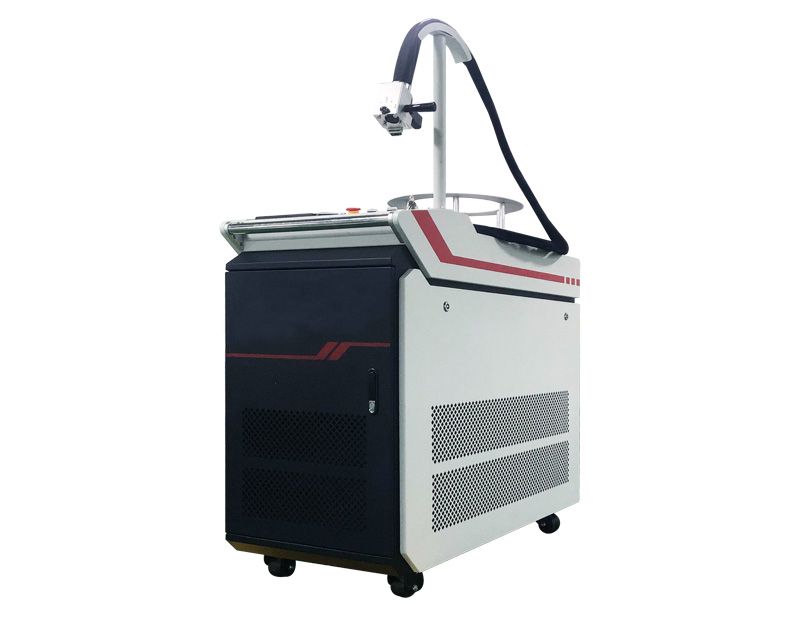

Hand-Held Design, Easy to Carry:

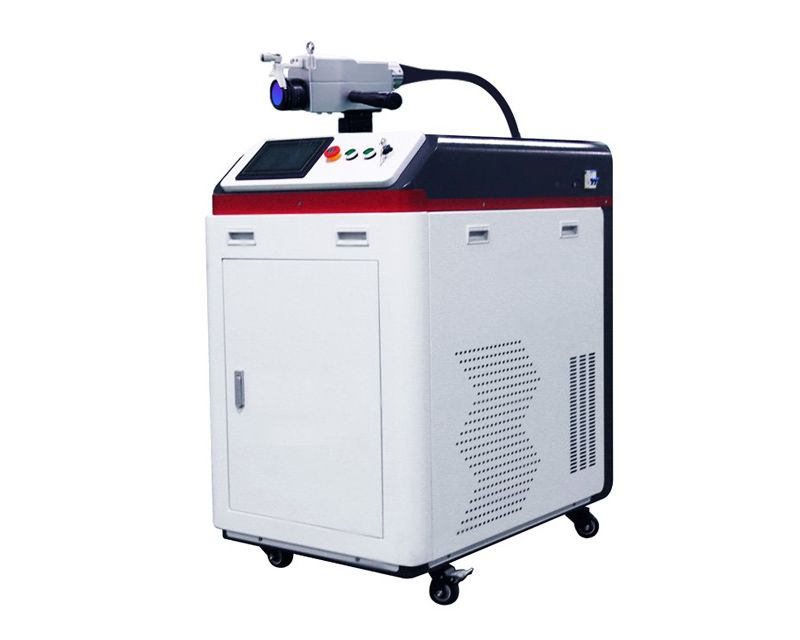

Compact size,Easy to Move:
• Machine is integrated and less floorspace occupation
• 10m(≥200w) optical fiber cable enables long-distance cleaning
• Top push&pull handle and bottom universal wheels help useres to move machine easily
Laser Source :
Top brand fiber laser source Max, high power. The energy density is high, the heat input is low, the amount of thermal deformation is small.
Water Chiller :
High cooling rate, which can weld fine weld structure and good joint performance.
Safety Clip :
There have the red safety clip on the side of the laser head. The operator must fix the clip on the metal materials, then the machine could normal working.
This is the protection for the operator, which give the more safe working environment.
Parameters
| Model | ZLC-1000 | ZLC-1500 | ZLC-2000 |
| Laser power | 1000W | 1500W | 2000W |
| Collimating focal length | 50cm | ||
| Focus length | 40cm | ||
| Cooling chiller | Industrial water chiller | ||
| Operation system | Ruida brand | ||
| Size | 123×85×125cm | ||
| Laser Source | JPT/Raycus/MAX | ||
| Cleaning width | 0-15cm | ||
| Fiber wire length | 10 meters | ||
| 10 meters | RelFar | ||
| Operate mode | Continuation/ Modulate | ||
| Adjustable format | 0-15CM | ||
| Certificate | CE,ISO,CCC | ||
| Weight | 300kgs | ||
Strong Service Team

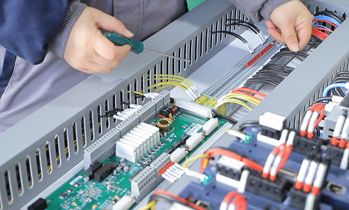

Quality Control & Testing
